ONE Technology Series Products

Oxide Nanoparticles Electromagnetic

ONE Technology Series Products

Oxide Nanoparticles Electromagnetic

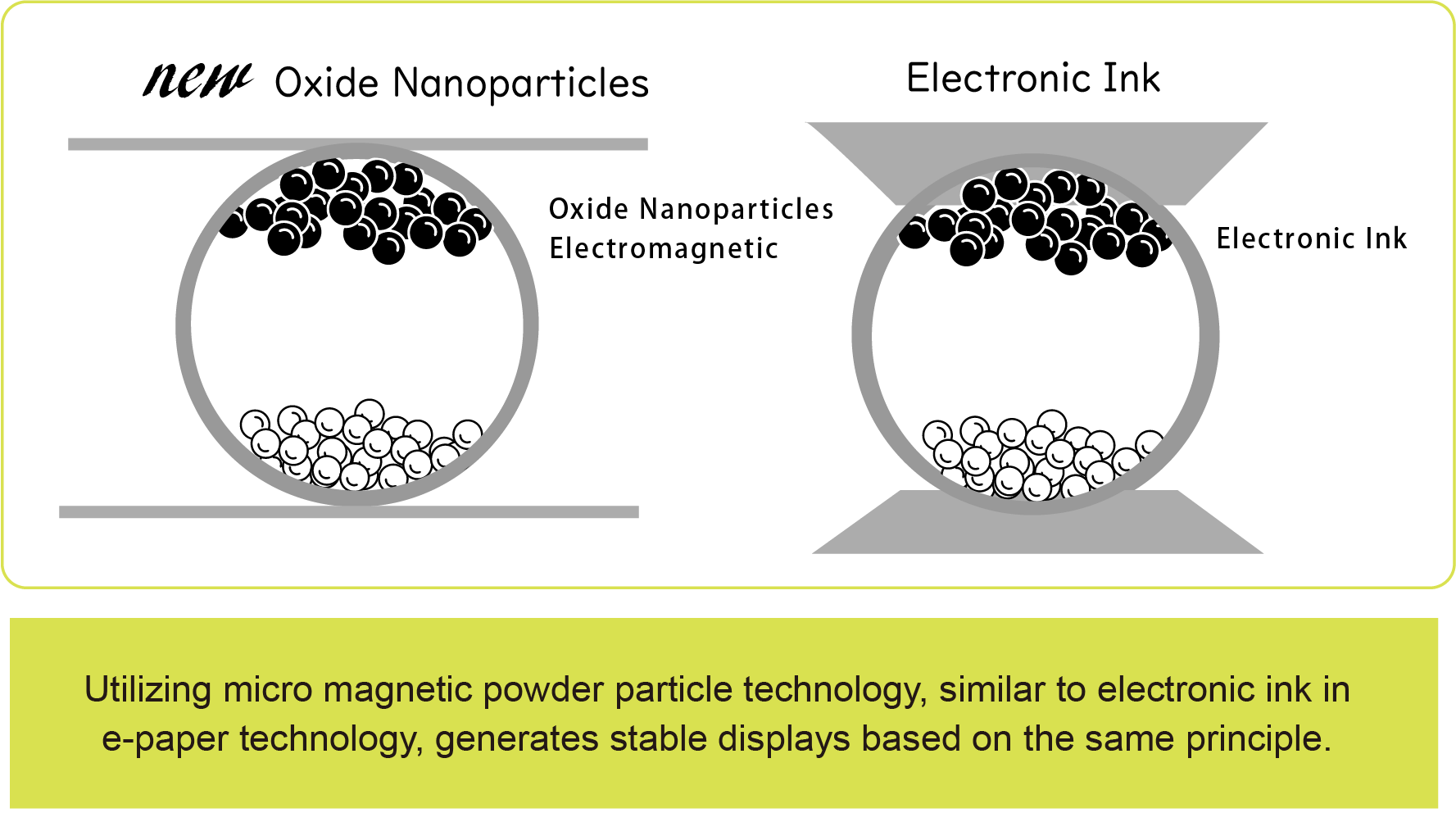

Utilizing nano-sized Fe₃O₄ (magnetite) particles, ranging from 5 to 10 nm, mixed with processed white powder and encapsulated in durable spherical microcapsules. The display is achieved through magnetic attraction and field waves.

Micro particles enable pencil-thin lines.

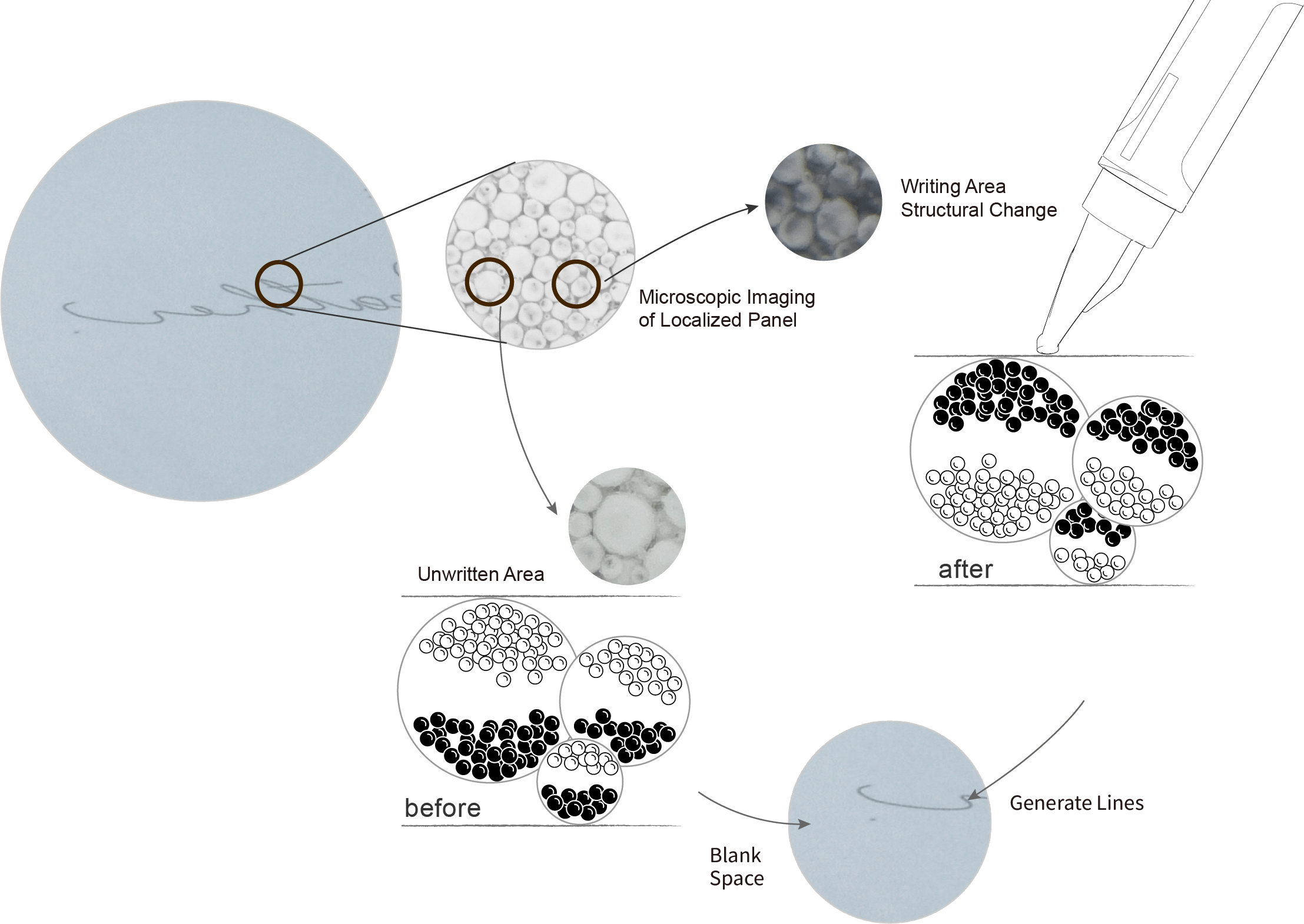

Under a microscope, the panel reveals a distribution of microcapsules. By using a special magnetic pen, the nano particles are attracted, causing the magnetic powder within the microcapsules to rise, allowing the panel to display pencil-like lines.

Electromagnetic Localized Purification Technology

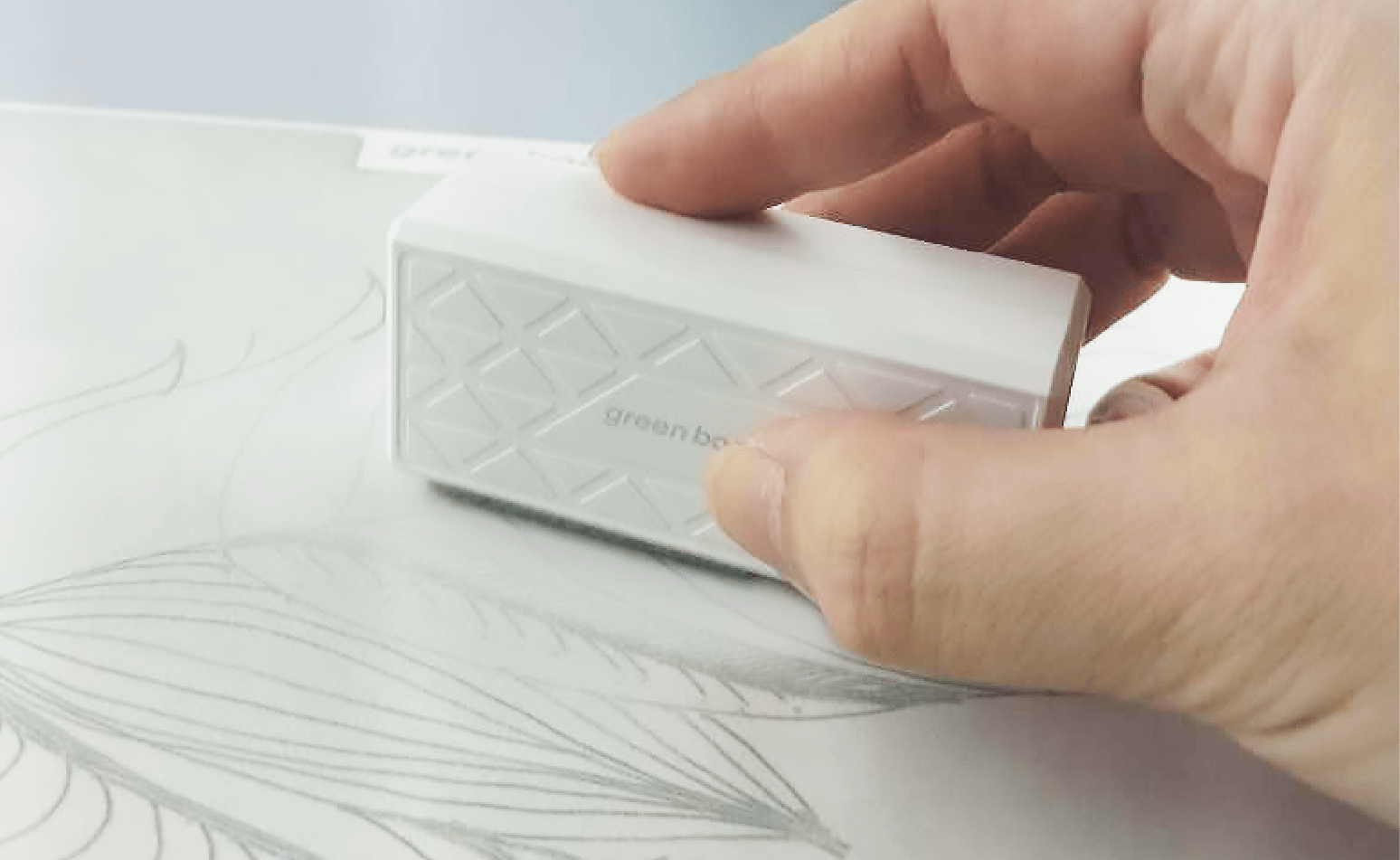

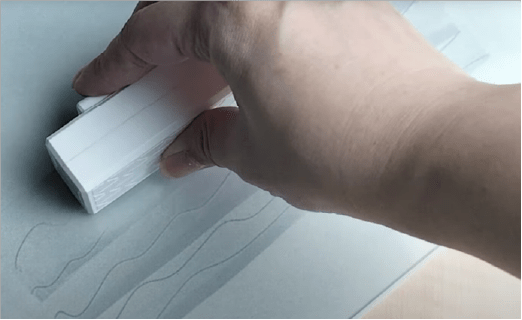

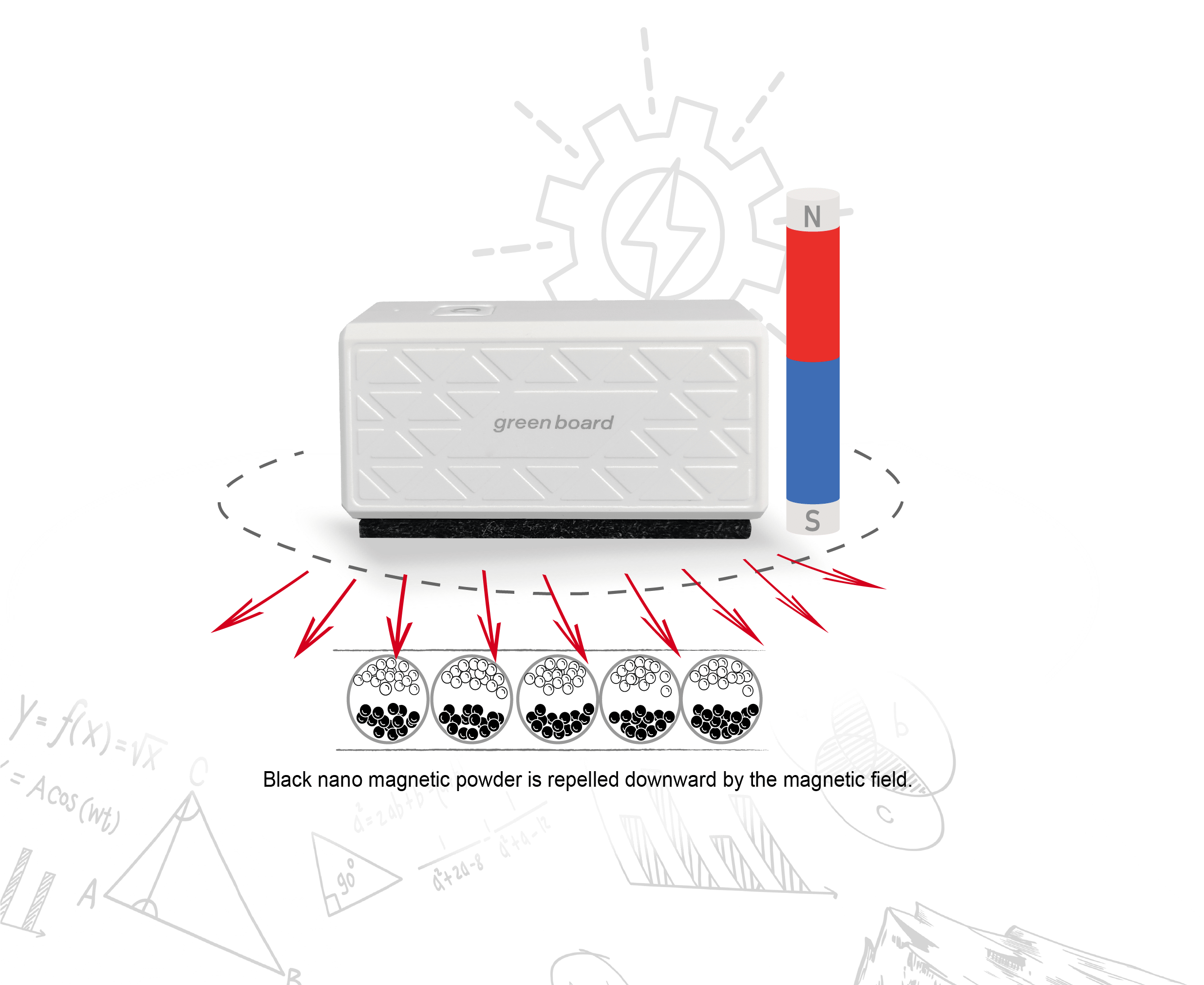

By applying the principle of magnetic repulsion between the north and south poles, a magnetic field wave is generated to repel the magnetic powder particles, pushing them to the bottom layer to achieve a panel-clearing effect.
